Air Cooled

XT760

SCR Assembly with Powerex T700 series Thyristor

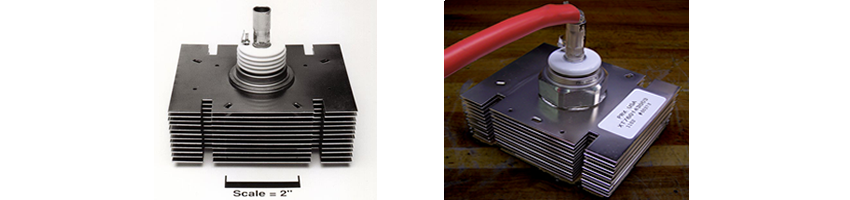

Integral Heatsink Assembly (Screw in type SCR)

Air Cooled Products

Phase Control SCR T760

• 200 to 2400V, 300A   DataSheet.93    DataSheet.82

Silicon Controlled Rectifiers

• 222 style: 200 to 1000V, 250A DataSheet.222
• 223 style: 200 to 1200V, 300A, 50 usec max Tq   DataSheet.223
• 276 style 200 to 1600V, 300A DataSheet.276
• 2231 style: 200 to 1000V, 300A, 30 usec max Tq
  2232 style: 200 to 1000V, 300A, 40 usec max Tq   DataSheet.2231+2232+
